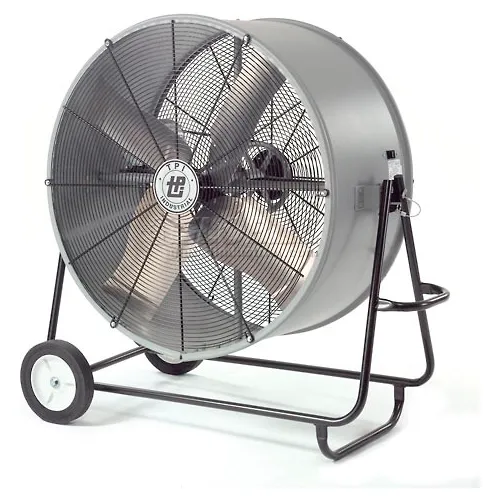

TPI 36" Hazardous Location Portable Barrel Fan w/ Swivel Base, 6,900 CFM, 1/2 HP, 1 Phase
TPI
PartCove SKU PC-9FA3968589F14E924FF5
This TPI industrial fan features permanently lubricated ball bearing type motors.
$4,030.80
Shipping and tax calculated at checkout.Confirm the listed model, dimensions, finish, and packaging. Similar appearance alone does not confirm compatibility.
KNOW YOUR PART
Product details
Review the specifications and exact fit for your application.
Size & dimensions (3)
- Width
- 53-1/4 in
- Depth
- 28 in
- Height
- 50-1/2 in
Specifications (30)
- Manufacturer part number
- PBS36BHL
- Pack quantity
- 1
- Selling unit
- each
- Weight
- 160 lbs
- Fan Diameter
- 36 in
- Assembly Required
- No
- Max Ambient Temperature
- 100 °F
- Number of Speeds
- 1
- Fan Type
- Industrial
- Number of Blades
- 4
- Motor Type
- Explosion Proof
- Mounting Location
- Free Standing
- Wattage
- 936 W
- Material
- Polyethylene
- Phase
- 1
- Blade Type
- Aluminum
- Indoor/Outdoor
- Indoor
- Sound Level
- 67
- RPM
- 500 rpm
- Type
- Drum Fan
- CFM
- 6900 CFM
- Horsepower
- 1/2 HP
- Color
- Gray
- Amperage
- 7.8 A
- Drive Type
- Belt Drive
- Hertz
- 60 Hz
- RPM High
- 500 rpm
- Voltage
- 120 / 240 V
- CFM High
- 6900 CFM
- Package Quantity
- 1
Description
This TPI industrial fan features permanently lubricated ball bearing type motors. Blower fans have corrosion and dent proof high density polyethylene housing. Includes spiral wire safety guards. Hazardous Location models have single-phase explosion proof dual voltage motors (120/240V) with external junction boxes rated for Class 1, Group D and Class 11, Groups E, F and G UL listings, and do not include power cord. Includes 4 aluminum blades. 2 wheel cart base permits drum to tilt 360° at 12-1/2° increments to direct airflow vertically. Drum locks into place with steel locking pin. This portable fan includes 10" hard rubber wheels. It meets OSHA standards. It is UL Listed , cETL Listed. This product has limited warranty of 1 year. Horsepower rating based upon maximum speed/load.
