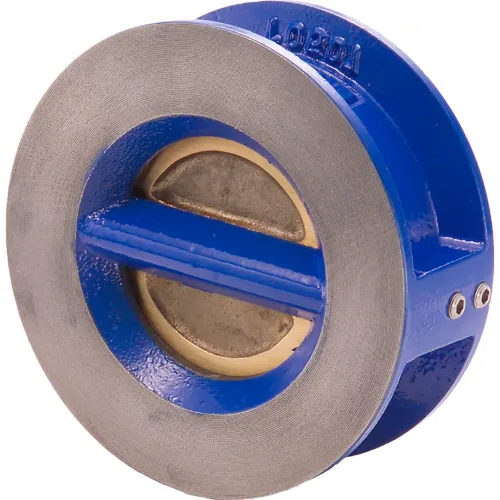

Legend Valve® T-312 Ductile Iron Check Valve with EPDM Seats, Aluminum Bronze Disc, 3" Wafer
Legend Valve
PartCove SKU PC-FAAD67BD2389866ABB8B
$167.94
Shipping and tax calculated at checkout.Confirm the listed model, dimensions, finish, and packaging. Similar appearance alone does not confirm compatibility.
KNOW YOUR PART
Product details
Review the specifications and exact fit for your application.
Size & dimensions (3)
- Length
- 5-1/4 in
- Size
- 3 in
- Diameter
- 5-1/4 in
Specifications (12)
- Manufacturer part number
- 116-223
- Pack quantity
- 1
- Selling unit
- each
- Connection Size
- 3 in
- Color
- Blue
- Max Temperature
- 180 °F
- Material
- Ductile Iron
- Valve Type
- Check
- Description
- Wafer Check Valve with EPDM Seats, Aluminum Bronze Disc
- Connection Style
- Wafer
- Package Quantity
- 1
- PSI
- 300 psi
Description
3" T-312 Ductile Iron Wafer Check Valve, Aluminum Bronze Disc Features:Dual spring-loaded discs assure quick, silent closure Elastomer seats create a positive seal against backflow Can be installed vertically or horizontally, in any orientation Durable ductile iron body is designed to install easily between Class 125/150 companion flanges The compact body design is lighter and requires less installation space as compared to traditional flanged swing check valves The split-disc, center-torsional spring design minimizes pressure drop Working Pressure, Non-Shock (PSI): Cold working pressure (CWP): 300 psi, Saturated steam (WSP): Not suitable for steam service Maximum service temperature: 180°F
