John Guest Metal Half Cartridge - 1/4 Brass Body, Gray Acetal Collet, Single Nitrile O-ring — Bag of 5

John Guest

PartCove SKU PC-14FD82BE589921E73BA3D188

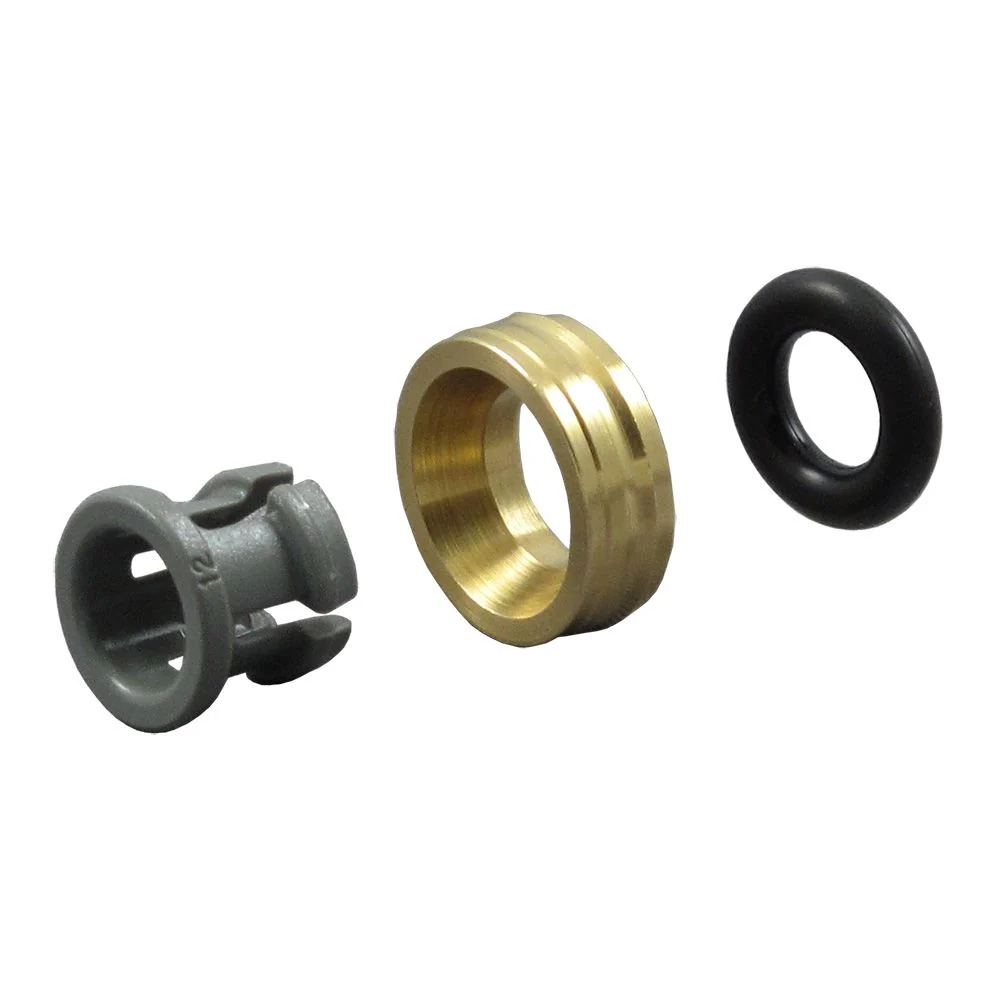

The John Guest brass half cartridges are an easy and cost-effective way of incorporating a push-fit connection into a wide range of OEM equipment. Easy to assemble and compact, push in connections avoid the need for threaded ports, offer improved product appearance and easy tube connection. Metal Half Cartridges consist of three components: a collet, a brass body and O-ring. Metal Half Cartridges are only recommended for use with soft metal housing materials. Features: Compatible with plastic or copper OD sized tubing Quick and easy connection/disconnection For filtration and food grade applications Food grade Nitrile O-Ring Made with lead free materials Working pressure and temperature: Max. 230 psi at 68° F Max. 150 psi at 150° F Note: As Plastic Half Cartridges are intended for use by Original Equipment Manufacturers they are only supplied in bulk quantities. Part # Tubing Size Color/Material O-Ring Material # of O-Rings PM2804S 5/32" OD Gray/Acetal Nitrile 1 PM2804S2 5/32" OD Gray/Acetal Nitrile 2 PI2808S 1/4" OD Gray/Acetal Nitrile 1 PI2808W 1/4" OD White/Acetal Nitrile 1 PCI2808S 1/4" OD Gray/Acetal EPDM 1 PI2808S2 1/4" OD Gray/Acetal Nitrile 2 PI2808W2 1/4" OD White/Acetal

PART DETAILS

• Product Length: 0.375 in.
• Sub-Type: Single O-ring
• Type: Fitting Cartridges
• Choose: Bag of 5
• Weight: 45 g

Confirm the listed model, dimensions, finish, and packaging. Similar appearance alone does not confirm compatibility.
