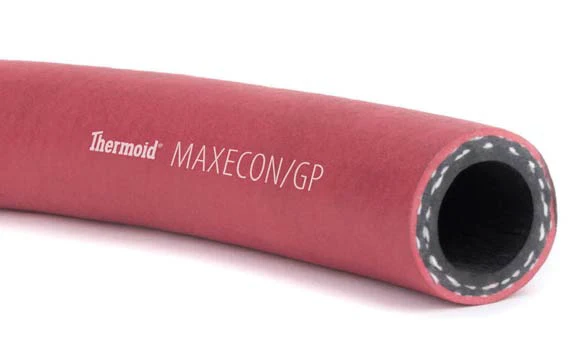

00336504400 by Thermoid | Maxecon/GP General Purpose Air and Water Hose | 1/4" ID | 300 PSI — Bulk (may come in multiple lengths)

Application

Maxecon is an excellent general purpose air and water service hose that can be used by all industries.

SAE Rating

N/A

Other Ratings

N/A

Tube

Nitrile blend, RMA Class A

Temperature Range

-20 Deg. F to +160 Deg. F or 180 Deg. F (Intermittent) (-29 Deg. C to +71 Deg. C or 82 Deg. C (Intermittent))

Please choose from the options below

Bulk (may come in multiple lengths)

Weight

59 g

SPECIFICATIONS Application: Maxecon is an excellent general purpose air and water service hose that can be used by all industries. SAE Rating: N/A Other Ratings: N/A Tube: Nitrile blend, RMA Class A Reinforcement: Spiral polyester yarn Cover: Nitrile blend, RMA Class B Temperature Range: -20 Deg. F to +160 Deg. F or 180 Deg. F (Intermittent) (-29 Deg. C to +71 Deg. C or 82 Deg. C (Intermittent)) Crimp Fittings: N/A Reusable Fittings: N/A Other Features: Medium Oil Resistant Cover. High Oil Resistant Tube. Part Number Nominal Inner Diameter Nominal Outside Diameter Reinforcement Spirals Working Pressure (PSI) Min. Bend Radius Weight (Lbs/Ft) 00336504300 .25" .50" 2 250 1.50" 0.08 00336504400 .25" .62" 4 300 1.50" 0.13 00336505300 .3125" .63" 2 250 2.00" 0.14 00336506300 .375" .69" 4 250 2.25" 0.17 00336506400 .375" .71" 4 300 2.25" 0.17 00336508300 .50" .84" 4 250 3.00" 0.24 00336508400 .50" .84" 4 300 3.00" 0.24 00336510400 .625" 1.00" 4 300 3.75" 0.28 00336512300 .75" 1.15" 4 250 4.50" 0.36 00336512400 .75" 1.15" 4 300 4.50" 0.40 00336512454 .75" 1.15" 4 300 4.50" 0.40 00336516300 1" 1.43" 4 250 7.00" 0.49 00336516400 1" 1.43" 4 300 7.00" 0.58 00336520300 1.25" 1.78" 4 250 8.75"
