Plumbing, pipe & fittings

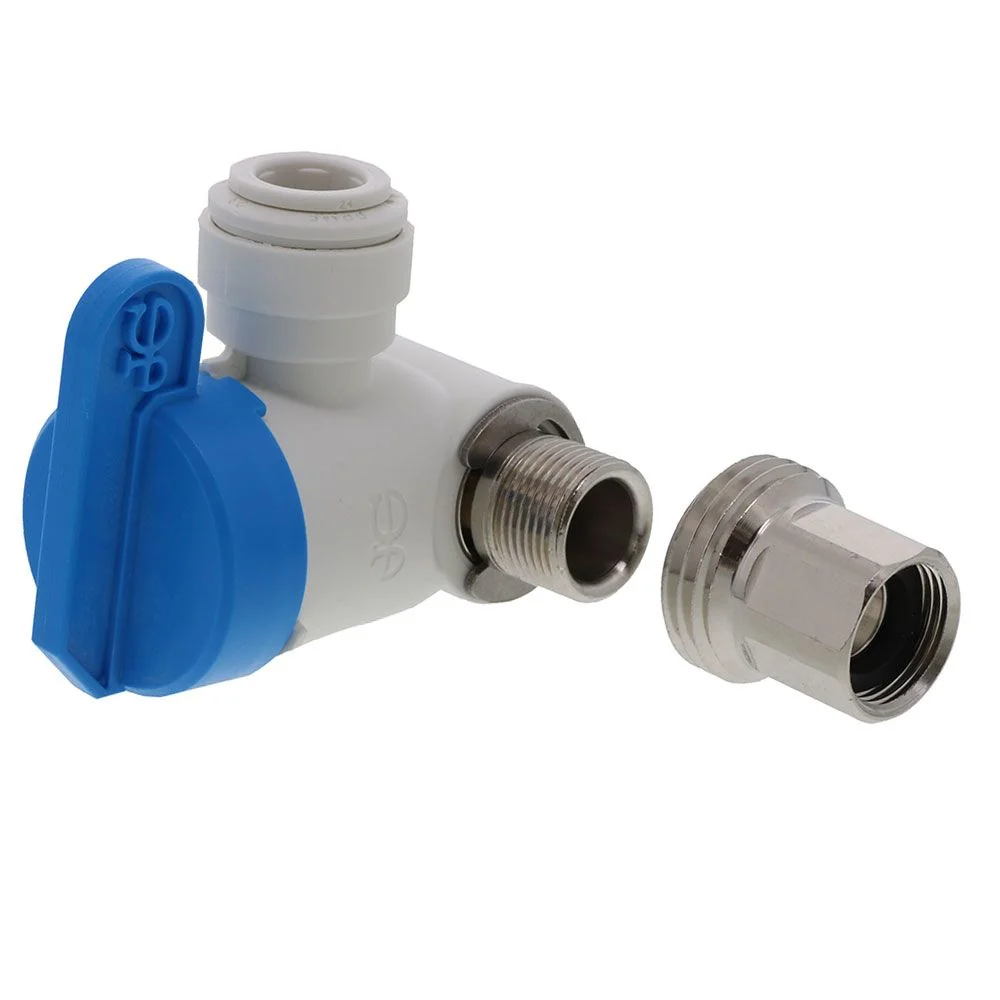

John Guest Conversion Thread Angle Stop Adapter Valve Lead-Free - 1/2 x 3/8 x 3/8 — Single

John Guest

PartCove SKU PC-904AE847D0C225EA94BC8161

The John Guest Angle Stop Adapter Valve provides an easy way to add a water feed supply from an existing chrome supply stop valve. These valves connect between the chrome supply stop and riser to provide a water supply feed line for water filtration systems, RO systems, coffee machines, and ice makers. The Push-fit technology makes installations quick and easy. They are manufactured in white polypropylene with food grade EPDM seals, with plated lead-free brass threads. Features: For use with plastic or copper OD sized tubing For cold water supply use only Threads onto 3/8 in compression chrome supply stop Quarter turn to open or close White Polypropylene body, EPDM seals Lead Free materials Quick and easy connection/disconnection NSF51 and NSF61 listed Not suitable for compressed air, explosive gases, petroleum spirits and other fuels or for heating systems Working pressure & temperature: Max 150 psi at 70°F Max 60 psi at 140°F Do Not Use these Valves: In a partially open position to control flow To provide a permanent termination Without tubing assembled or plugged (or threaded connections sealed) As a tap of “faucet”

PART DETAILS

• Product Length: 2.409 in.
• Type: Shut-Off Valves
• Valve Type: Angle Stop Valve
• Choose: Single
• Weight: 110 g

Confirm the listed model, dimensions, finish, and packaging. Similar appearance alone does not confirm compatibility.
