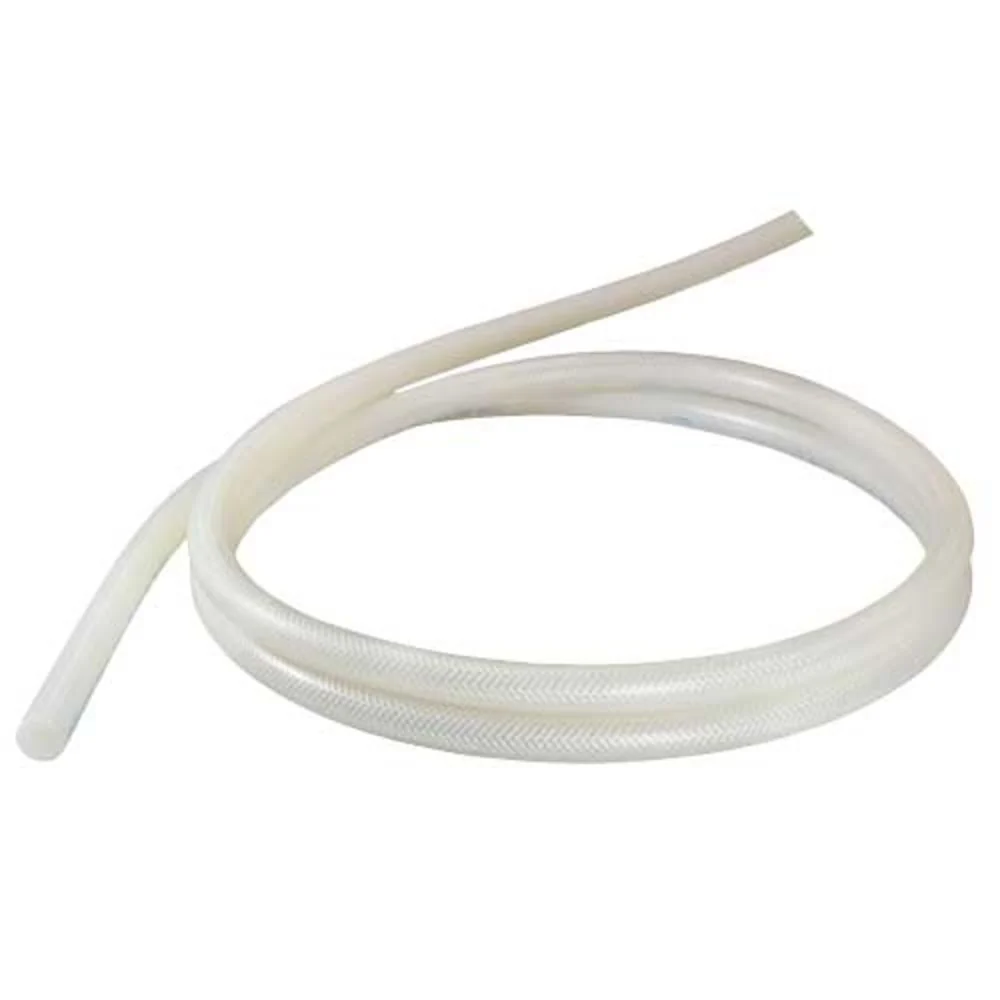

Silbrade Braid Reinforced Silicone Tubing 3/16 ID x .447 OD x 1' — 100 Foot Roll

NewAge Industries

PartCove SKU PC-967F2F277E3730402CA36DD6

Silbrade® Silicone Tubing enables silicone tubing to handle increased pressure applications as well as offering outstanding resistance to temperature extremes and is made of FDA-sanctioned ingredients. Silbrade® is a flexible design and allows excellent bend radii and permits installation in restricted spaces without impeding flow. Specifications: Tubing ID: 3/16" Tubing OD: 0.447" Tubing Material: Peroxide-Cured Silicone with mesh polyester braid Temperature Range: -80° - 350° F Working Pressure: 216 psi @ 70° F Made from FDA-sanctioned ingredients Odorless, tasteless and inert Resists UV, ozone, gases and moisture NSF 51 certified for food equipment materials Coil Length: 100'* Applications: Adhesive LInes Beverage Service Bottle Filling Chemical Feeds Deionized Water Treatment Fermenter Lines Hot Fill Lines Food Handling Laboratory Resin Feeds Stirring Vessels Viscous Material Handling Note: Any length of tubing that is less than a full coil must be custom cut and is non-returnable. Only complete, unaltered coils may be returned. * Orders for lengths greater than 100' will receive full coil(s). Any remaining length will be shipped as a separate segment.

PART DETAILS

• Body Material: Silicone
• Outer Diameter: 0.447 in
• Type: Silicone Tubing
• Choose: 100 Foot Roll
• Weight: 426 g
